중국 청동색 gleitlager 제조 업체

다이아몬드 기름 & Sphercial 기름 쪼개지는 청동색 소매 투관, 부시를 기름을 발라 각자

제품 상세 정보:
원래 장소: 중국제
브랜드 이름: VIIPLUS
인증: ISO 9001
모델 번호: 투관
결제 및 배송 조건:
최소 주문 수량: 양도할 수 있는
가격: Negotiable
포장 세부 사항: 수출 판지 목제 깔판 나무로 되는 상자
배달 시간: 7-25 일 일
지불 조건: T/T
공급 능력: 7000000 조각/조각 1 주
지금 연락

상세 정보

상표: VIIPLUS 물자: 청동
유형: 소매 크기: 주문을 받아서 만들어진 크기
제품 이름: 쪼개지는 청동색 투관 질: 고품질
하이 라이트:

wrapped bronze bushings

,

graphite sleeve bearings

제품 설명

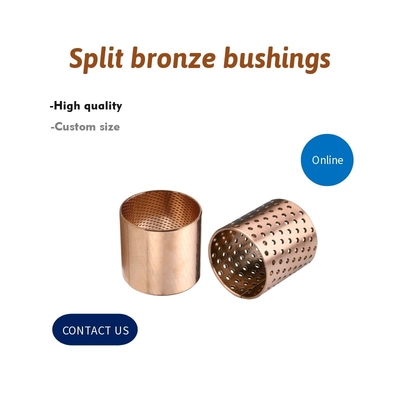

Diamond Oil & Sphercial Oil Split Bronze Sleeve Bushings , Self Lubricating Bush





Check Out Our Inventory. Stock Bronze Parts China Factory Directly Price. Order Online Today. Stock Size Ship Today. Types: Tin Bronze CuSn8 Standard Material, Metric Bushings, Oil-Less Type Bushing, Split Bronze Bushings, Dia,ond Oil Indentations/Holes

Diamond Oil & Sphercial Oil High Quality Bronze Material Split Bronze Sleeve Bushings gleitlagerbuchsen made in china

A Professional Manufacturer of bronze plain bearings and wear plates

Search High Quality FB090 FB092 Bronze bushing Manufacturing and Exporting supplier from china: https://www.viiplus.com

Bronze wrapped Bushing E90F/E92F Flange Bronze Bushing made to order standard size from china.

Dry Bushing, Prelubricated sliding bearings

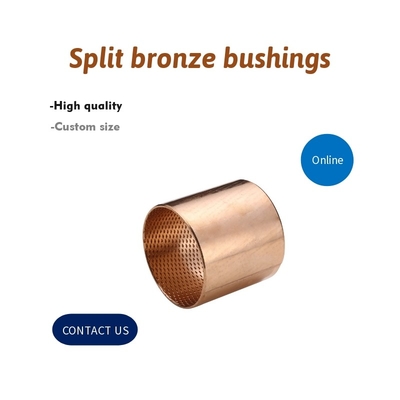

090 Split Bronze Bushings, with tin bronze alloy CuSn8 as the material, surface rolling diamond oil hole, plays the role of oil storage, it has good fatigue strength and bearing capacity, corrosion resistance, wear resistance.Widely used in agricultural machinery, construction machinery, construction machinery and other high-load low-speed occasions.Download Download bush bearing catalogue, FB-090 series bronze bushing.pdf.

bronze sleeve bushings

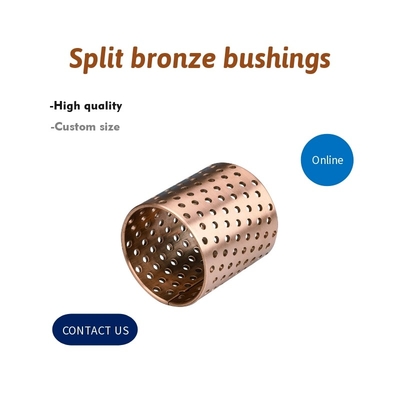

092 Split Bronze Bushings is made of tin-bronze alloy CuSn8. The working surface is evenly arranged with lubrication through holes according to a certain Angle and density. It is easy to form an oil film when starting, so as to reduce the starting friction coefficient.It has good resistance to fatigue, corrosion and wear.This series of bronze bushings are widely used in agricultural machinery, construction machinery, construction machinery and other high-load low-speed occasions.Download bush bearing catalogue,FB092-200100pdf.pdf.



bronze sleeve bushings





Chemical composition



Part No.

Material

Cu

Sn

P

Pb

Zn

090

CuSn8

91.3%

8.5%

0.2%

/

/

092

CuSn8

91.3%

8.5%

0.2%

/

/









Technical Data



Max. Load Capacity





Static Load

N/mm2

120

Dynamic Load

N/mm2

40

Max. Speed





090

m/s

2.0

092

m/s

>2.5

Max. PV Value

N/mm2·m/s

2.8

Tensile Strength

N/mm2·m/s

450

Mpa

N/mm2·m/s

250

Hardness

HB

90-120

Elongation



40%

Coefficient of Friction

μ

0.08~0.25

Operation Temperature Range

-100~200

Thermal Conductivity

W/(m · k)

60

Thermal Conductivity

k-1

15×10-6







Standard oil hole





            090 Oil Indentations Holes                                              092 Oil Indentations Holes







Bronze Bushings Diamond Oil Indentations Holes                                            Oil Indentations Holes

E90F E92F Flange Bushing Specification Tolerance



  • Bronze Bushing Housing ØH7
  • Bushing Bushing inner-Ø after mountingH9
  • Shaft tolerancef7 to h8











Feature



090 Split Bronze Bushings are made of entirely bronze CuSn8. Because of material properties, the working surface rolled with diamond Indentations (standard Indentations) or stamped oil grooves according to detailed application. And it also has good Performance of anti-corrosion caused by chemical and environments. During the operation, the grease & oil will be released from the Indentations, which allow for long-term lubrication. Compare with Machined bronze bearings; 090 can offer some advantages including thin wall, lower weight, cheaper cost, high load etc. It is suitable for high load, lower speed application like construction, Transport, and agriculture machinery.



092 Split Bronze Bushings is deriving from 090; the difference between 090 & 092 is Indentations on working surface, which substituted by Through-holes. Theses holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication. It is suitable for high load, lower speed application like construction, Transport, and agriculture machinery.



Advantages



1.Good fatigue resistance

2.High load capacity

3.Corrosion resistance

4.Abrasion resistance







Application



090 has been widely used in lifting machinery, construction machinery, automobile tractor chassis, machine tool industry and mining machinery, but also can be made into bearing bush, flanged bushing, thrust gasket and ball bowl and other forms.



092 has been used in conveyors, elevators, rolling machine, leveling machine, such as medium load, low speed occasions.





Viiplus strengthens the self-lubricating bearing with impact resistance, the dust resistance not only solved the lubrication difficulties but also reduced the operating noise and therefore prolonged the service life of the bearing, especially in critical environments such as than mining applications and outdoor operations.

· Backhoe Loader
· Bulldozer
· Undercarriage
· Excavator

application





Cusn6.5 & Cusn8 Tin Copper Bronze Bushing 090 & 092 China Viiplus Bearing Cylindrical & Flanged Inch Size, Find details about China Self-Lubricating bearings supplier

VIIPLUS constantly study new bronze bushings materials and new sliding bearings bronze bushes development

Wb700 Wb702 Wb800 Wb802 Fb090 Fb092 Fb090f Fb092f bronze bushings metal split straight bushing / cusn8 gap bronze bearing / flange bushes ... E90 E92 Copper Sleeve Slide Bearing E90F E92F Flange Bronze Bushing
