캐나다에서 데이비드우리의 회사 수입품은 viiplus 도자기, viiplus 직업적인 팀에서 청동색 gleitlager 통관 항상 매끄럽다는 것을 확인합니다. 그들은 정확한 청동색 투관 분류를, 취급합니다 모든 문서 업무를, 우리 받았습니다 각자 기름을 바르는 청동색 투관을 제공합니다. 그들은 잘 해 고품질 봅니다.
-
캘리포니아에서 Valerie우리는 공기에 의하여 incoterm FOB 상해의 밑에에 중국에서 청동색 gleitlager를, 때때로 수입합니다. viiplus는 아주 좋은 청동색 gleitlager 공급자입니다, 그들은 아주 직업적이고 참을성 있는, 우리가 새로운 순서를 알린 후에, 때 맞추어 제조자 청동색 gleitlager 그리고 저희에게 계획을 주기 위하여, 그 때 우리는 다만 청동색 부속을 받을 필요가 있습니다
-
독일에서 데이지슬리브베어링과 더 단단한 동심성과 브론즈 부싱 물질 균일성을 위한 최고 표면가공도. 중국의 표준 인치의 좋은 공급자와 측정 슬리브베어링과 부싱. https://www.bronzelube.com/

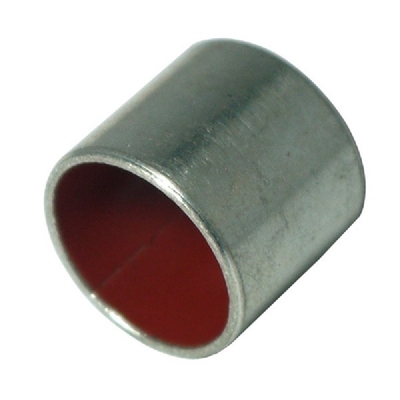

반대 웨어 낮은 마찰계수 브론즈 슬리브 부싱
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x재료 | PTFE 부싱 | 사이즈 | 표준 크기, 이용 가능한 인치 사이즈 |
---|---|---|---|
타입 | 소매 | 브랜드 이름 | oem |
부싱 공장도 가격을 지니기 | tiffany@viiplus.com | 베어링 부싱 제조사를 자가 윤할하기 | https://www.viiplus.com/ |
HIGH 표시등 | 소결된 브론즈 부싱을 자가 윤할하기 | 특성 | 그리스 저장소가 있는 청동 부싱( BRO-MET, FB090, BRM10, WB800) |
부시 베어링 제조들 공급자들 수출들 | 미끄럼 베어링. 긴, 유지보수가 필요없는 서비스가 다양한 디자인에서 그리고 다른 물질로부터 부싱을 제조합니다. tiffany@viiplus.com, 부싱 - 컨피규어와 구매 - | ||
하이 라이트 | 낮은 마찰계수 브론즈 슬리브 부싱,반대 웨어 브론즈 슬리브 부싱,전기적 스쿠터 브래스 슬리브 부싱 |
Self-balancing Scooter Bushing, Bike bushing, Bearings and bushings used in the frame of a scooter, including the steering stem and engine mounts.
Bronze Ptfe Steel Backed bushings are used in the rear-wheel suspension of this electric scooter.
Best value Bushing Scooter – Great deals on Bushing Scooter ...
Bike Bushing
Wholesale Electric Motor Bushing Bearing Steel Bushing
Buy cheap bushing for scooter — low prices, shipping online, Cheap bushing for scooter – a catalog of goods at low prices and with fast delivery. And a wide range of quality bushing products from china.
Electric Scooter Bushing Parts
Control Arm Rear Bushing
Scooter Bushing

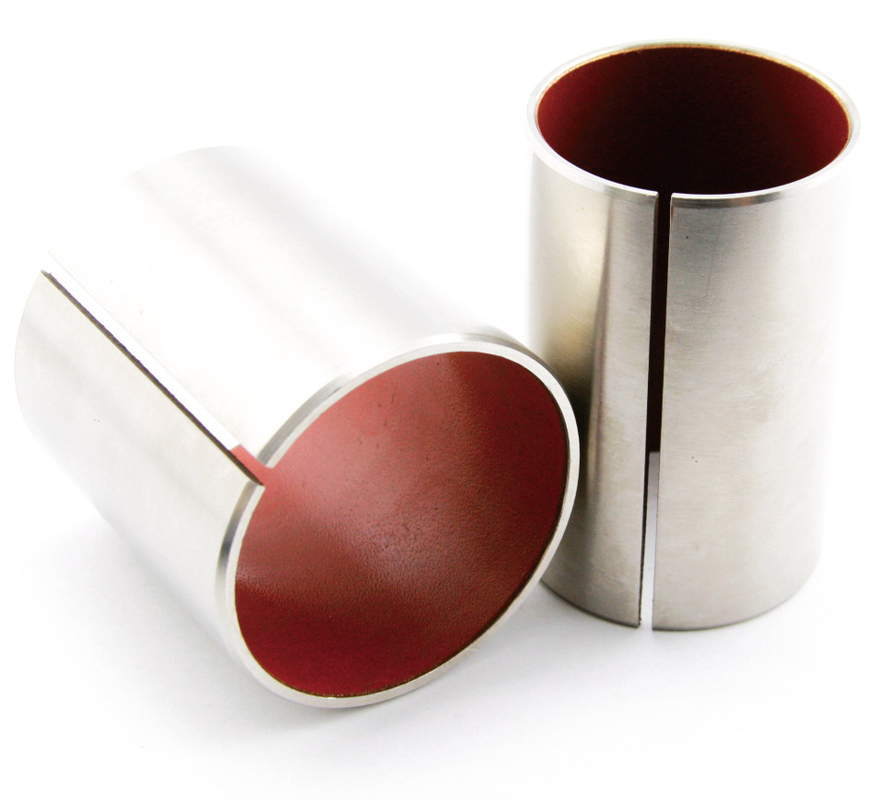

Electric Scooters Sleeve Bushings
Material Structure
1. PTFE with Pb 0.01~0.03mm
2. Porous bronze 0.2~0.3mm
3. Stainless steel backing 0.7~2.3mm
Technical Data
Specific load capacity (static) | ≤ 250 [ N/mm² ] | |
Specific load capacity (dynamic) | ≤ 140 N/mm² at low speeds | |
Specific load capacity(rotating oscillating) | ≤60N/m㎡ | |
Friction value | 0.08 to 0.2 µ(dry)0.02 to 0.08µ(hydrodynamic) | |
Temperature | -200 to +280 [ °C ] | |
Max. dry running Pv (Short-term operation) | 3.6N/m㎡﹡m/s | |
Max. dry running Pv (Continuous operation) | 1.8N/m㎡﹡m/s | |
Max. speed (dry running) | 2m/s | |
Max. speed (Hydrodynamic operation) | >2m/s |
Characteristics
Low friction coefficient, good anti-wear, good anti-corrosion
Performs well in mid-acid and strong alkaline condition
Availability
Standard cylindrical bushings, flanged bushings, thrust washers and strips are availabe
Special designs are produced at short notice
Lead free type is also available
Material |
Stainless Steel Base+Bronze Powder +PTFE |
Typical Application |
the corrosion resistant part in dyeing machinery and ocean industry, etc. |
Max Static Load |
250N/mm² |
Max Dynamic Load |
140N/mm² |
Max Oscoillation Load |
60N/mm² |
Max Line Speed |
Dry 2.5m/s, Oil > 5m/s |
PV Value Limit |
Dry 1.8N/mm².m/s,Oil 3.6N/mm².m/s |
Friction Coefficient |
Dry 0.08~0.20, Oil 0.02~0.12 |
Mating Axis |
Hardness >220, Roughness 0.4~1.25 |
Working Temperature |
-200~+280℃ |
Thermal Conductivity |
40W/mk |
Coefficient Of Linear Expansion |
11×10-6/K |
Our Services
1,We are produce high quality and low price good wear resistance sliding bush supplier
2,Our sliding bush passed the ISO TS 16949 .
3,Under the guidance of Pursuit of the excellence & keep improving.
4,We will do our best to provide the quality products and professional sevices.
